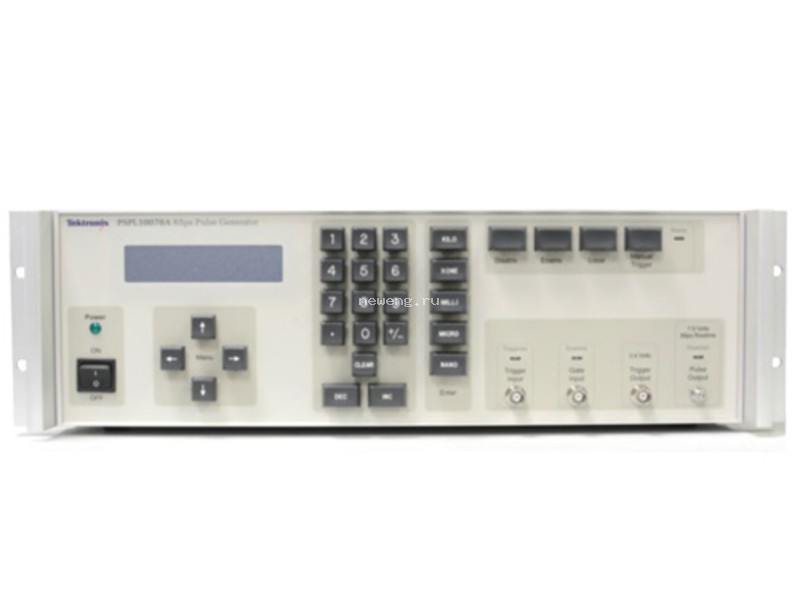

Tektronix Генератор импульсных сигналов PSPL10050A

цена по запросу

шт.

Генераторы импульсов Tektronix обеспечивают сочетание короткого времени нарастания и высокой амплитуды с невероятной целостностью сигнала. Приборы имеют регулируемую длительность импульсов и доступны в исполнениях с ручным управлением или с управлением от ЭВМ.

Описание Характеристики Файлы

The PSPL10000 Series Pulse Generators offer premium signal integrity with convenient front panel or computer control. The high voltage outputs have fast edge rates, smooth transitions and minimal overshoot & ringing. Adjustable output levels are obtained using internal step attenuators, ensuring consistent signal shape at all settings. The outputs are designed for a 50 Ω impedance, but can safely drive any load from a short circuit to an open.

Key performance specifications

Pulse amplitudes from 7.5 to 10 V
- 10 V fixed amplitude, PSPL10050A
- 900 µV to 10 V, PSPL10060A
- 700 µV to 7.5 V, PSPL10070A
Rise times from 65 ps down to 45 ps
Adjustable duration from 100 ps to 10 ns
Single shot, or 1 Hz to 100 kHz repetition rate

Key features

Keypad interface
Programmable IEEE-488
Internal, external, manual, or GPIB trigger modes
Gated output

Applications

University education and research
UWB signal source
Semiconductor characterization
Laser driver

Typical performance

Rise time for the PSPL10050A at 2 V/div and 20 ps/div

Adjustable duration for the PSPL10050A at 2 V/div and 200 ps/div

Rise time for the PSPL10060A at 2 V/div and 20 ps/div

Adjustable duration for the PSPL10060A at 2 V/div and 100 ps/div

Rise time for the PSPL10070A at 1.2 V/div and 20 ps/div

Adjustable duration for the PSPL10070A at 1.2 V/div and 200 ps/div

Ordering information

Models

PSPL10050A: 45 ps PULSE GENERATOR, GPIB
PSPL10060A: 55 ps PULSE GENERATOR, GPIB
PSPL10070A: 65 ps PULSE GENERATOR, GPIB

Specifications

All specifications apply to all models unless noted otherwise.

Model overview

The performance parameters listed in this table are typical values; parameters are guaranteed only when maximum and/or minimum limits are given.

Parameter	PSPL10050A	PSPL10060A	PSPL10070A
Amplitude into 50 Ω ^{(See Notes)}	10 V (fixed)	900 μV to 10 V, adjustable in 1 dB steps	±700 μV to ±7.5 V, adjustable in 1 dB steps
Amplitude accuracy, into 50 Ω	± 0.2 V
Polarity	Positive only	Positive only	Positive or negative
Baseline	0 V	0 V	-5 V to +5 V in 1.25 mV steps
Transition time, leading edge (10 – 90%) (20 – 80%)	≤45 ps typ, ≤55 ps max ---	≤55 ps typ, ≤65 ps max ---	≤65 ps typ, ≤75 ps max ≤40 ps typ, ≤50 ps max
Transition time, trailing edge (10 – 90%) (20 – 80%)	≤110 ps typ, ≤130 ps max ---	≤115 ps typ ---	--- ≤80 ps typ ≤100 ps max
Reflection coefficient	±5% during pulse +80%, -40% after pulse	±5% during pulse +80%, -40% after pulse (improves with increasing atten.)	50% @ 0 dB (7.5 V) 20% @ 6 dB (3.7 V) -10 % @ > 10 dB (
Source impedance (nominal)	50 Ω
Duration (FWHM) ^{(See Notes)}	100 ps to 10 ns in 2.5 ps steps
Baseline precursor
Topline overshoot
Topline perturbations
Topline flatness

Notes:

The duration and delay values displayed on the front panel LCD and programmed over the GPIB are only to be considered “nominal” values and not absolute values. The duration and delay parameters do exhibit some thermal drift, rep rate dependency and interaction. There will be some loss in amplitude at minimum pulse durations. The amplitude tolerance of ±0.2 V holds only for > 2 ns durations. Always use an oscilloscope as an independent check of these pulse parameters. The instrument is adjusted and calibrated at the factory in an ambient temperature of 23 °C (±3 °C) at a rep. rate of 100 kHz. The instrument will operate over a temperature range of 0 to 50 °C but will not meet all specifications over this range.

Trigger and timing
